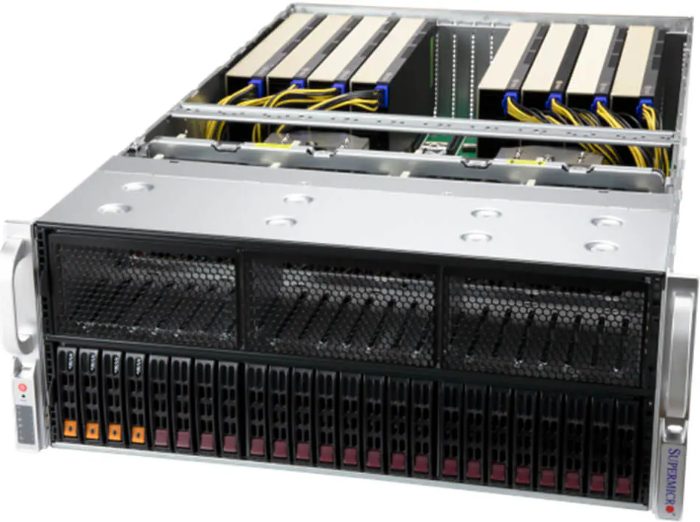

- 1 x Supermicro AS-4125GS-TNRT / CSE-418G2TS
1 installed HPC node(s).
- 1 x AMD EPYC 9655
CPU: 1 across all 1 node(s).
- 1 x Generic ECC RDIMM 12 x 64 GB DDR5-6400
memory: 1 across all 1 node(s).
- 1 x NVIDIA RTX PRO 4000 Blackwell
GPU: 1 across all 1 node(s).
- 1 x Canonical Ubuntu Server 24.04 LTS
operating system: 1 across all 1 node(s).
- 1 x Samsung 9100 PRO 2 TB (PCIe Gen5 NVMe)
OS/applications drive: 1 across all 1 node(s).
- 1 x Samsung 9100 PRO 8 TB (PCIe Gen5 NVMe)
analysis/scratch drive: 1 across all 1 node(s).
- 2 x Seagate Exos X24 24 TB enterprise HDD
dataset drive (ZFS mirror): 2 across all 1 node(s).

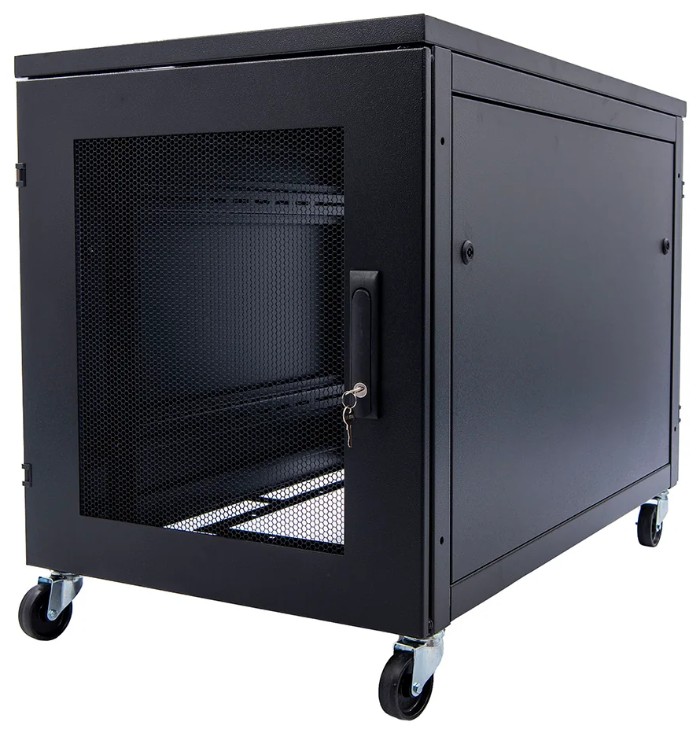

- 1 x Orion (rackcabinets.co.uk) NSR 18U 800x1200
NSR 18U 800x1200 selected because required capacity is 18U (1 installed HPC node(s) x 4U = 4U; Reserved future HPC node positions = 8U; 100GbE switch = 1U; KVM = 1U; Management / PDU / cable allowance = 2U; Service reserve = 2U) and rack depth of 1070 mm usable satisfies the 1050 mm chassis requirement.
- 1 x Supermicro 4U-5U ball-bearing rail kit MCP-290-00057-0N
Manufacturer-certified quick-release sliding rail kit for the CSE-418 family chassis used by every Hyperion compute node; the AS-4125GS manual publishes a 676-925 mm rack range and states that one rail pair is supplied with the chassis (one per compatible selected rack device).
- 1 x NVIDIA SN2100/SN2010 static rail kit
Single-switch 1U half-width static rail kit for SN2100/SN2010 short-depth switches, covering 600-800 mm rack post spacing; not supplied with the switch (one per compatible selected rack device).
- 1 x ATEN KL1108VN/KL1116VN standard dual-rail mounting kit
Dual-rail console support supplied with the LCD KVM, covering 420-770 mm rack post spacing; the Orion assembly set-point is 700 mm (one per compatible selected rack device).
- 1 x Orion (rackcabinets.co.uk) Vertical cable tray pair
Full-height vertical cable trays in both rear side channels, separating power (A/B feeds) from data looms down the rack.
- 1 x Orion (rackcabinets.co.uk) Cable ring set
Cable guide rings dressing patch and KVM looms between rack units.
- 1 x Orion (rackcabinets.co.uk) Roof-mounted fan tray (4-fan)
Four-fan roof extraction tray assisting front-to-back airflow out of the cabinet.
- 1 x Orion (rackcabinets.co.uk) Blanking panel set
Blanking panels for unpopulated U positions, preventing hot-air recirculation through free space.
- 1 x Orion (rackcabinets.co.uk) Cage nut and fixing pack
M6 cage nuts, bolts and washers for the full rack build.
- 1 x Axiotech (assembled) Node power & patch cabling set
Per-node connection set: two IEC C19 power cords to the A and B PDU feeds, Cat6a patch leads for admin, IPMI and production LANs, loom labelling and hook-and-loop dressing (one per installed node).
- 1 x Axiotech (assembled) Enclosure cabling & fixture overhead
Rack-level connection overhead: UPS-to-PDU input cords, power leads for switches, NAS, KVM and fan tray, earth bonding kit to the cabinet frame, spare connectors, loom labels and identification.

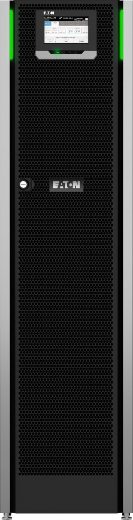

- 1 x Eaton 93PS 20kW (3:3)
93PS 20kW (3:3) selected because the UPS sizing load is 10660 W and the configured headroom factor of 1.2 requires at least 12792 W of UPS output. Floor-standing three-phase UPS positioned beside the rack (0U).

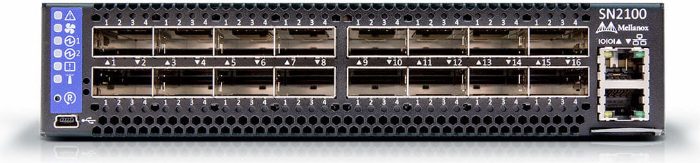

- 1 x NVIDIA Spectrum SN2100
100GbE switch installed now because the future node target is 3 and network fabric reservation is enabled.
- 2 x Generic Vertical 0U PDU, 16 x C13 + 4 x C19
2 x Vertical 0U PDU, 16 x C13 + 4 x C19 as A+B redundant feeds (1 per feed) for dual-PSU equipment; each feed provides 20 outlets against a sized demand of 11 (current demand 7, including 2 spare).

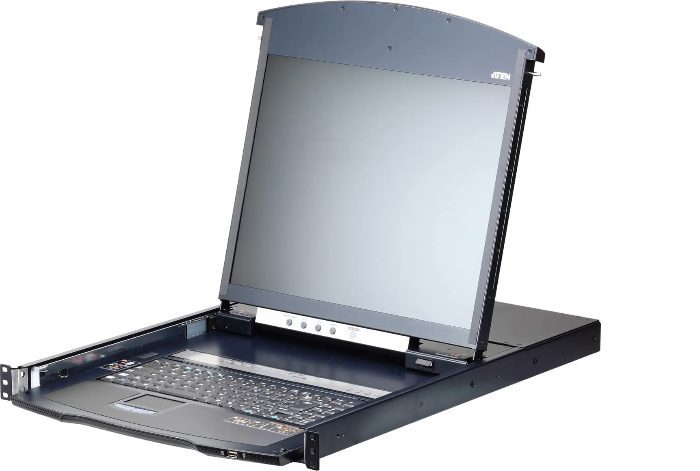

- 1 x ATEN KL1108V
KL1108V selected (8 ports >= required capacity of 3). 1 x KA7169 adapter(s): one per installed HPC node.
- 1 x ATEN KA7169
One KVM adapter per installed HPC node per KVM chain (console and/or KVM-over-IP).
- 1 x Axiotech System integration
Build, integration, burn-in and OS provisioning per HPC node
- 1 x Axiotech Rack integration
Rack build, PDU/cabling, UPS commissioning and labelling
- 1 x Axiotech Delivery
Palletised delivery to site (UK mainland)
